So I have fairly intact versions of both of the 17" necks and they are VERY EASY to tell apart - even if you don't know which 17" iMac the neck originally came from. They are also VERY DIFFERENT - so know which one you are using before proceeding. These are the only two part numbers for 17" necks I have been able to find. Other variations or small differences may exist, I can not be certain. Remember, you always have the option of opening up the monitor and looking at the JAE connector. Because they all use the same LCD, the pin number/position will always be the same. I will focus on the differences.
My previous post/17" pinout detailed what I will call:
NECK A: This is part #661-2825 and is the for the 1ghz and 1.25ghz 17" iMac G4.
Here is a picture of the JAE connector. Notice that the pins are glued onto a black board which is then encased in a silver connector with prominent push clasps on the sides.
Here is the inverter - LCD side. Notice the colors from left to right (Blue, Black, Red, Green, Purple, ORANGE)
Bottom of the inverter again you can see the presence of an ORANGE wire
The bottom of the video cable that plugs into the motherboard had this number on it (620-2305). I don't know if this is universal across all of these necks, but I wanted to point it out).
DVI pinout A - 1 or 1.25ghz iMac neck |
Inverter Pinout A: 1 or 1.25ghz Neck |
So here again is the DVI and Inverter pinouts for Neck A recognizable by:
1) Part #661-2825
2) Comes from a 1 or 1.25ghz 17" iMac G4
3) Has a black/silver JAE 30 pin connector to LCD
4) Has an Orange Wire in the inverter cable
5)??Has the number 620-2305 on the motherboard side of the video cable
NECK B: This is part #661-2716 and is the for the 800mhz 17" iMac G4.

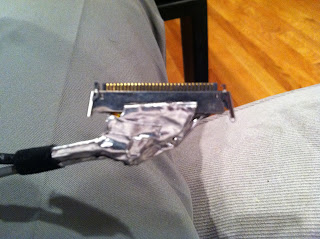

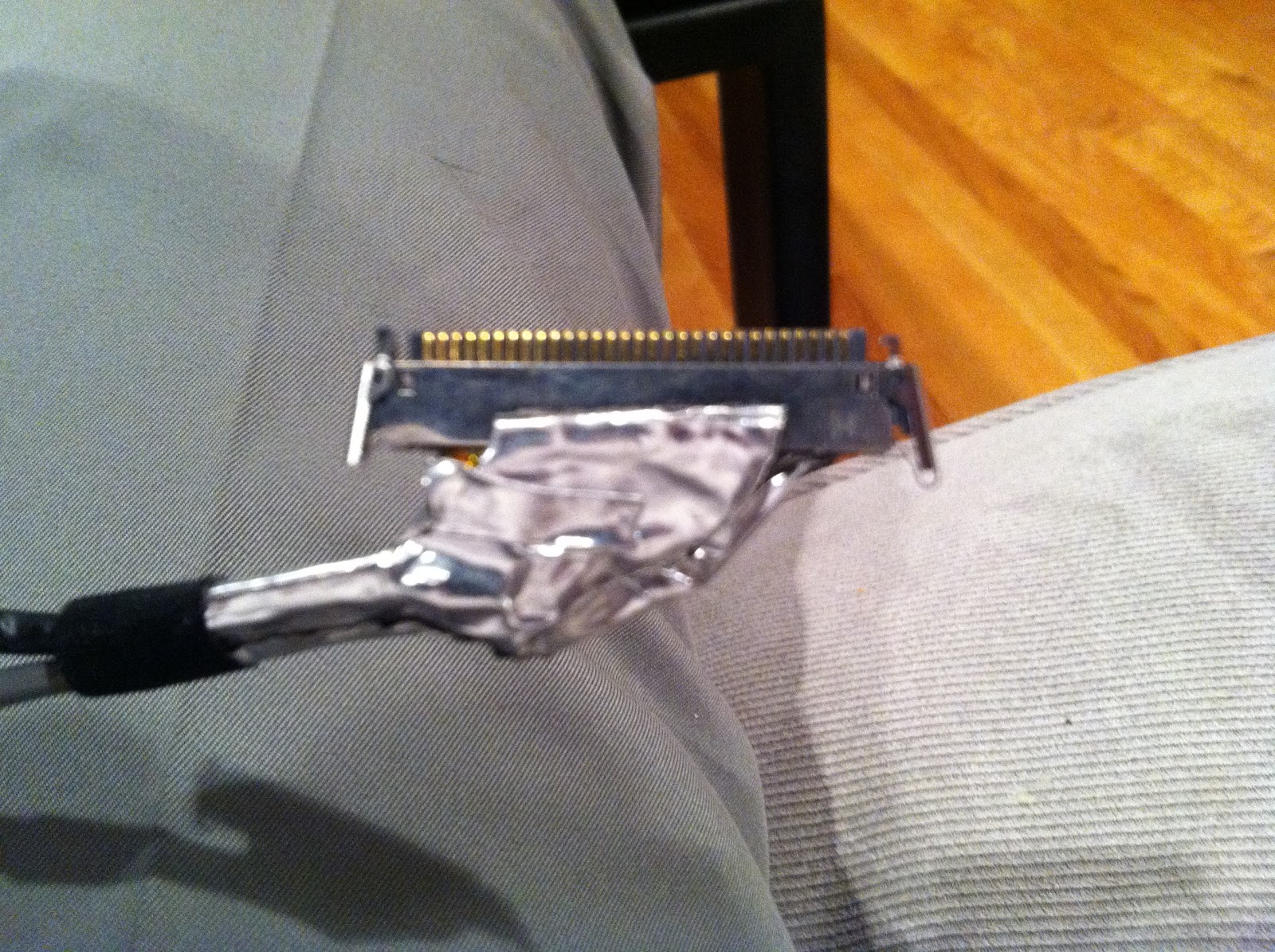

I have peeled back the aluminum foil, but you can see that the JAE connector that connects to the LCD is one where the pins snap into a beige connector and there are no clasps on the side.
Here is the inverter (LCD side). Notice the colors from left to right (Blue, Black, Red, Green, Purple, OFF-WHITE)
The bottom of the inverter (removed from connector) again shows the OFF-WHITE colored wire [NOT ORANGE]. There is also a number on the motherboard side of the video cable. Again, I'm not sure how specific this is. (620-2122).
So here is the new TMDS to DVI and Inverter pinouts for Neck B recognizable by:
1) Part #661-27162) Comes from a 800mhz 17" iMac G4

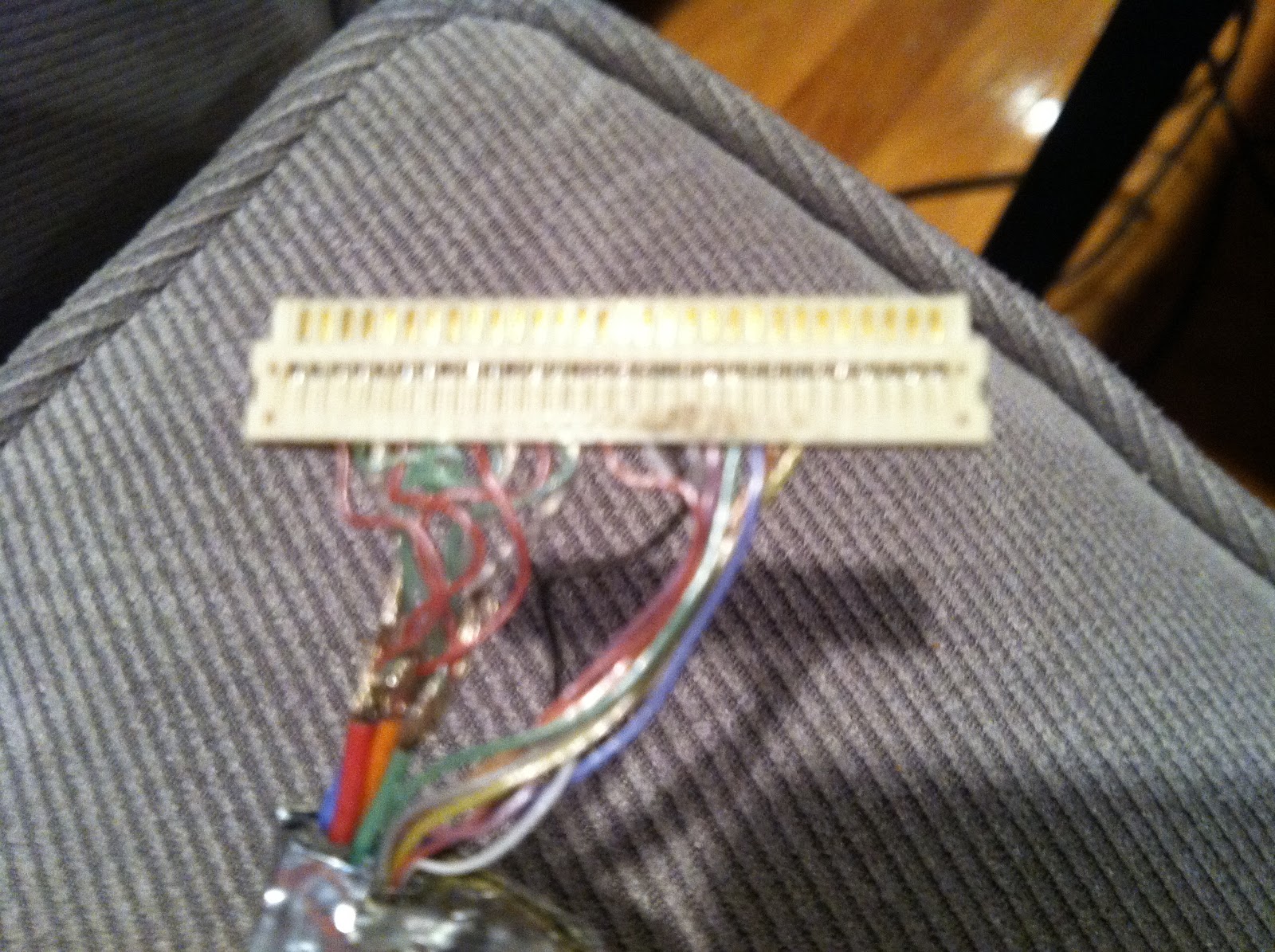

3) Has a beige JAE 30 pin connector to LCD
4) Has an Off-White Wire in the inverter cable
5)??Has the number 620-2122 on the motherboard side of the video cable
DVI pinout B - 800mhz iMac neck |
Inverter pinout B: 800mhz neck |
Conclusion:
There are so many differences, there is a Brown cable in one, an Orange in the other. The order of the rest of the wires is completely different. Even the Clock/Data cables are reversed White/Black. While I myself have set up Neck A, a reader of my blog has gotten it working with neck B. Obviously the color of the wires really doesn't matter its what pin they connect to thats important. As there may be a slight difference in what I call "blue vs. purple" etc. Here is a close up of the 2 JAE connectors and the order of their wires (pin 1 position is on the left to pin 30 on the right).
NECK A: 1 or 1.25ghz 17" iMac |
Hello JBerg, I stumbled on your blog searching for info on my 17" G4 iMac. I don't know if you will respond but I have a couple of questions.
ReplyDeleteSadly the old G4 is getting a little bit sluggish these days. I've overclocked it to 1.33 but even so the kids complain that it's too slow :( The overclocker refused to tell me the pin combinations for higher speeds saying the processor would fry! So I've been looking at the first gen "plastic" iMacs. They seem to be pretty cheap so long as they have a busted screen!!
So my first question is would the 17" G4 1440x900 screen simply slot in to the 17" Intel 1440x900? If it would then how on earth do you get the display out of the G4's enclosure?! Preferably not using an angle grinder!
I don't want to shoe horn a Mini board (Mac or ITX) into it, besides Intel Mac Minis are still pretty expensive, even Core Solos. Are there any other speed mods that can be made to the G4?
Hmmm, seem to have managed to answer my own question. The G4 is TMDS while the Intel is LVDS. So the answer is no, not without a conversion board.
ReplyDeleteIt appears that the G4 iMac screen simply has a TMDS to LVDS converter just prior to the display. So back to plan A and any advice on how to crack open the G4 display panel, it appears to be epoxy bonded!
ReplyDeleteOS1: Yes there is a special Texas Instruments chip that turns a TMDS signal to LVDS within the monitor itself. I have heard other modders say that if you connect LVDS the chip just allows the signal through, so the monitor can accept either LVDS or TMDS. I myself can not confirm this however.
ReplyDeleteUnless your iMac has been modified, to open the display look at the bottom of the monitor display. There are 3 small screws. These are torx-6 screws. You will need a torx-6 screwdriver, do not mess around with anything else. (Torx-6 screwdrivers are readily available at any basic hardware store). These screws strip very easily. Once the screws are out. Pull the front of the monitor out from the bottom half. The front of the display will pop out.
Note that the lcd screen itself is actually attached to the front of the monitor.
Excellent, many thanks JBerg. I want to use the sacrifice of the G4 as a last resort but it's good to know I can.
ReplyDeleteI also tracked down the clock jumper settings for the G4 iMac so I may send it out in a blaze of glory, in part just to see what can be squeezed out of it. It was a 1.25 as was my old G4 Mini. The Mini runs quite happily at 1.5 so I suspect the iMac will too. The max 1.66 may be pushing it though. Have you ever overclocked the G4 iMac?
JBerg, thanks very much for this confirmation, very useful. I can confirm that my 17" reflects everything you mention in the (620-2305) neck and monitor above. Down to the (620-2305) label around the video cable everything is the same. I will be following your guide and I'll let you know my progress.
ReplyDeleteTobi
OS1 - I never have tried to overclock it, sounds interesting though.
ReplyDeleteTobi - Thank you for letting me know - I appreciate it. Please keep me updated on your progress.
JBerg - the two sites for indications on how to overclock are and ; macflowerpot appears to be intermittent but I have a printout :-) If you try let me know how you get on. I'm not going to try it until I have at minimum a replacement mobo!!
ReplyDeletehmmm, it removed the URLs!!
ReplyDeleteTry 2
blimey, how does it do that!
ReplyDeleteTry 3
ethernetworks dt de forwd slsh imac_g4_usb2_overclocking dt h t m l
macflowerpot dt c o m forwd slsh clk dt h t m l
In the Inverter pinout, what is a "Floating" wire, and what do I hook it to? Or is it just there for looks?
ReplyDeleteI left it not connected to anything. It's the brightness control. 0V is full brightness by default while I believe 3.3V is fully dimmed. I didn't want to put not connected because it's not a useless wire, you could connect it to a switch or regulator to give yourself a hardware brightness adjust if you wish.
ReplyDeleteAwesome. Also, On your pinouts, you state 5V (3.3V) as the power requirements. Will either work? I'm using a power supply that's producing exactly 5V. Do I need to find one at 3.3V?
ReplyDeleteIf you check it with a multimeter it does read 3.3V, but I - like you - only had 5V - it worked just fine. Now, could there be long term consequences to using the higher voltage, that I don't know, but it did not alter image quality at all.
ReplyDeleteHey I just got mine working, but it looks like for mine, 0V is fully dim. I need to find a 3.3V AC Adapter to verify, but mine was pretty low.
ReplyDeletehttp://thegreatmod.blogspot.com/2011/06/backlights-pt-1.html
New theory, I gave it the 3.3V (3.75V actual) and the brightness increased by an incredibly tiny amount (I had to hook it and unhook it a few times to know for sure the brightness change wasnt in my head). Any Ideas?
ReplyDeleteMy best theory is that 3V is fully dim, but you need a small voltage in order for it to be fully bright. Unfortunately, I don't a smaller voltage AC adapter (1V or something similar) to see if that's right. Is this completely bogus?
I have never had a similar brightness issue to be honest. 0V should be maximum. Even when I hook just the inverter up, the screen is quite bright without the orange connected. Out of the 4 or 5 people who have replicated this the only issue one reported was using 5V instead of 12V for the red wire. Try this switch if you haven't yet.
ReplyDeleteI recommend hooking up ONLY the inverter to have just the backlights on. Look closely and see if one side is brighter - could one of the CCFLs be out? Check your resistors make sure they are 1Kohm and rated at least 1/2 amp. Switch them out. Third it could be either your inverter, CCFLs, or power source. If you still have the other 17" LCD (even if the LCD broke - the backlights should still work). Hook the inverter to that LCD - if it's fully bright - you can assume the CCFLs are failing, if it looks similar you may want to consider a replacement inverter. Also what are you using for a power source? You may just want to check the voltage on each line with a multimeter.
If you look at the pic in my "17" inverter confirmed post" and my "17" pinout confirmed post" the screen is quite bright. I can assure you that there was no voltage connected to the orange wire for any of these. Let me know if this helps at all.
